RF Amplifier Modules

Amplifier Modules

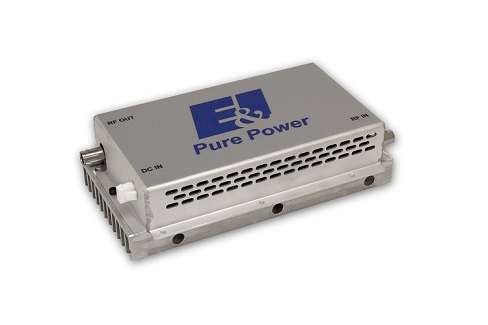

E&I provides reliable RF amplifier modules that cover frequencies from 10kHz - 200MHz, with power levels ranging from 5W - 200W. The same technology used in our benchtop solutions is now offered in modules, pallets, and subsystems.

The same E&I quality, now in modular form.

Narrowband and broadband solutions from 10kHz - 200MHz
Smaller physical footprint than benchtop amplifiers

Build-to-spec OEM amplifiers.

Designed for your frequency range, gain, and form factor.

Request Your Custom Quote

Note: Customer will provide necessary DC power, signal source, cooling, and load.

Title	Start Frequency	Stop Frequency	Rated Power (P1dB)	Supply Voltage	Gain	Gain Flatness	Harmonics
10M200	0.3 MHz	200 MHz	10 W	24 VDC	40 dB	± 1.5 dB	< -20 dBc
M-2100-T	0.01 MHz	12 MHz	100 W	42 and 24 VDC	50 dB	± 1.5 dB	< -25 dBc
AL10W-HF	5 MHz	25 MHz	10 W	12.5 VDC	48 dB	± 2 dB	< -10 dBc
M-A075-T	0.3 MHz	35 MHz	75 W	42 and 24 VDC	50 dB	± 1.5 dB	< -25 dBc
AL10W-LF	0.5 MHz	20 MHz	10 W	12.5 VDC	47 dB	± 1 dB	< -10 dBc
M-1020-T	0.01 MHz	5 MHz	200 W	42 and 24 VDC	53 dB	± 1.5 dB	< -15 dBc
15M30	2 MHz	30 MHz	15 W	24 VDC	42 dB	± 1.5 dB	< -25 dBc
CDA-LF-HP	0.01 MHz	20 MHz	5 W	24 VDC	40 dB	± 1.5 dB	< -25 dBc
AL20W-HF	20 MHz	200 MHz	20 W	24 VDC	48 dB	± 2 dB	< -15 dBc
AL20W-LF	0.25 MHz	50 MHz	20 W	24 VDC	52 dB	± 2 dB	< -15 dBc
FORTE-50	0.25 MHz	50 MHz	50 W	48 VDC	48 dB	± 2 dB	< -25 dBc
M-0240-T	0.01 MHz	12 MHz	40 W	42 and 24 VDC	50 dB	± 1.5 dB	< -25 dBc
